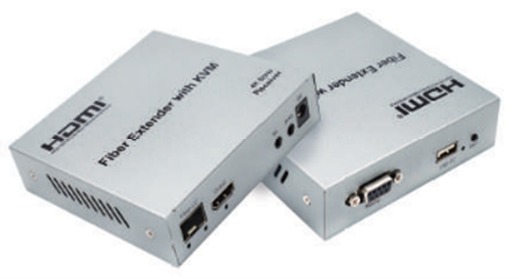

FIBERDOCKING ® USER MANUAL      ________________________________ HDMI/KVM Extender over Fiber  20km (4K@60Hz)



Table of Contents

1. Introduction

HDMI fiber extender is a device transmitting HD audio and video signal via bidirectional single fiber cable.

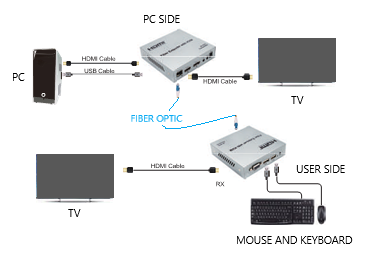

Connection Diagram

Extend HDMI and USB ( Mouse and Keyboard) over standard single Fiber Optic.

2. Instructions

Connection Interface Table (TX)

Interface diagram for the transmitter ( PC side).

Interface	Function
RS232	RS232 port
USB-PC	USB port (connect to PC)
RST	Reset button
Fiber-LC	Fiber -LC type fiber port
Output	HDMI Signal output port
Input	HDMI Signal input port
R/L	3.5mm stereo output
IR-TX	IR transmitter port
DC	5V Power Interface

Connection Interface Table (RX)

Interface diagram for the transmitter ( USER side).

Interface	Function
RS232	RS232 port
USB1	USB port (connect with keyboard or mouse)
USB2	USB port (connect with keyboard or mouse)
RST	Reset button
Fiber-LC	Fiber -LC type fiber port
Output	HDMI Signal output port
R/L	3.5mm stereo output
IR-RX	IR receiver port
DC	5V Power Interface

3. Features & Specifications

Features

8. Support HDMI 4K@60Hz/HDCP2.2;
9. Support transmitter HDMI Loop out;
10. Support 3.5mm stereo output;
11. Support IR;
12. Support KVM;
13. Support RS232;
14. Comply with SFP MSA and SFF-8472 standard protocol;
15. Pure hardware design, plug and play, do not need to install additional software;

Specifications

9. HDMI Version    4K@60Hz / HDCP2.2
10. HDMI resolution    The highest input resolution is 3840*2160@60Hz
11. Audio format    L-PCM
12. Fiber wavelength.    1310nm; 1550nm
13. Fiber transmission distance.    20km
14. The maximum operating current    1.5A/5V DC(TX), 1.2A/5V DC (RX)
15. Operating Temperature range    (-10℃～ +55℃)
16. Dimension (L x W x H)    106x106x17(mm)
17. Weight    TX:272.1g RX:273.1g

Appendix A – Package

Package Includes:



Item	Quantity
HDMI fiber extender transmitter	1 PCS
HDMI fiber extender receiver	1 PCS
DC 5V/2A power supply	2 PCS
IR Cable	1 PAIR
